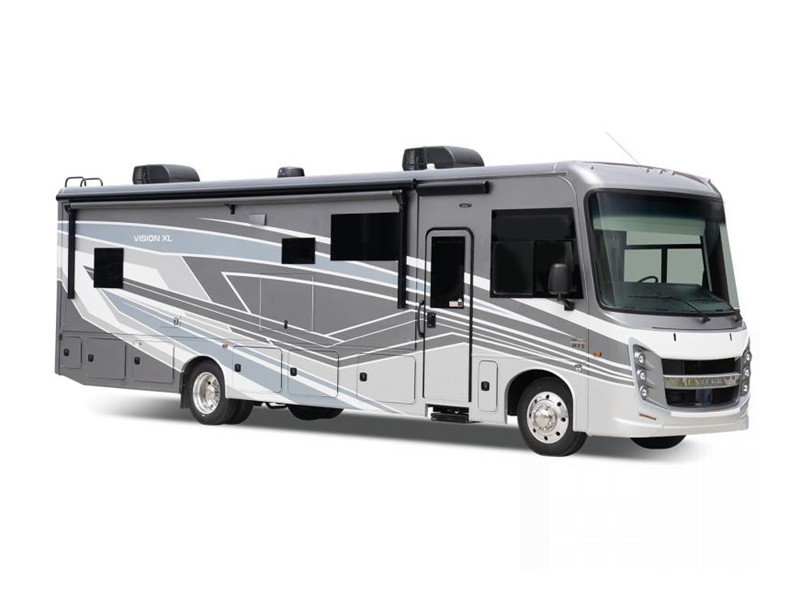

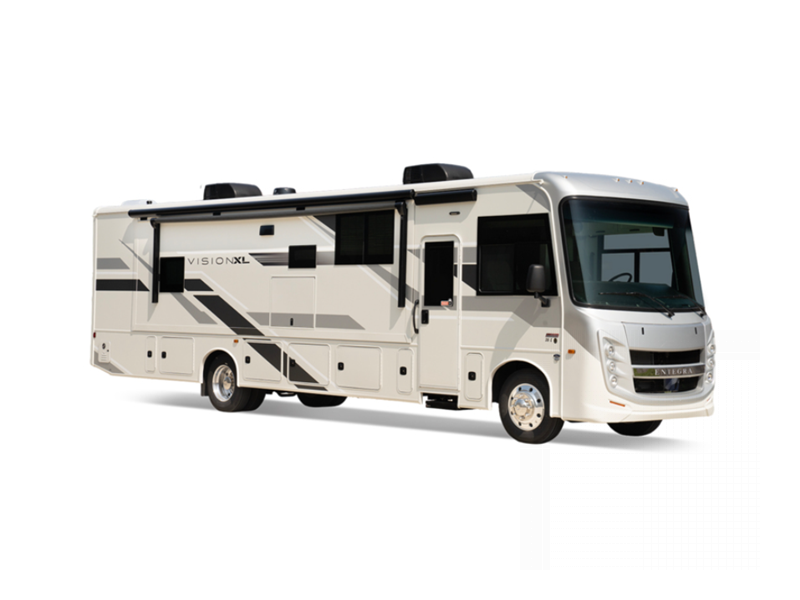

Entegra Coach Vision XL Motor Home Class A RVs For Sale

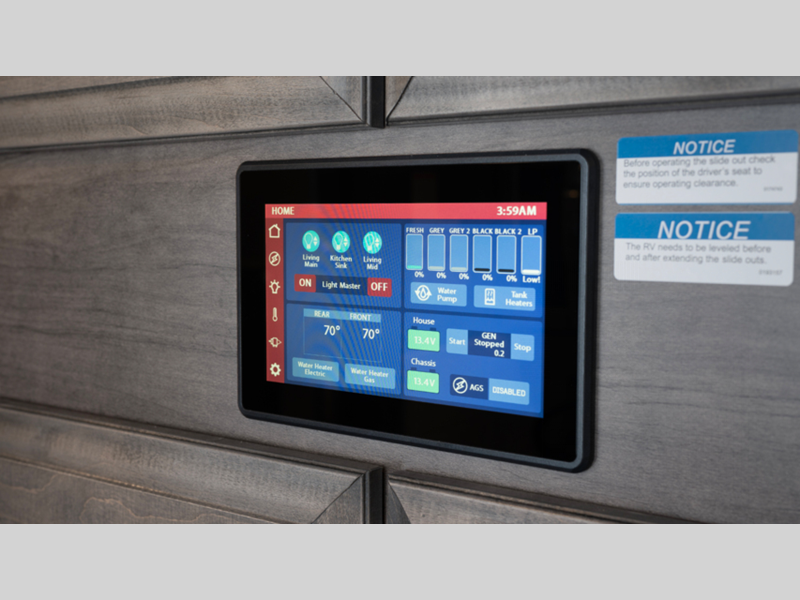

The Entegra Coach Vision XL Class A gas motorhomes are longer and more spacious to provide more room for everybody! You will have control right at your fingertips with the Firefly Total Coach Control system that has a 7" touchscreen and app integration.
With more space, means more extras like a residential-size refrigerator and microwave. The E-Z Drive Elite comes with a computer balanced driveshaft, variable-rate jounce bumpers, heavy-duty front and rear stabilizer bars, SACHS shocks, and 22.5" Michelin tires so you can be sure to safely arrive at each destination. A Ford F53 chassis and TuffShell vacuum-bond laminated floors and sidewalls hold them together. They even have an Onan Marquis Gold Genset 5,500 watt generator with auto-gen start!
If you need a little more room for your travels then you need to get your hands on an Entegra Coach Vision XL Class A gas motorhome!
-
Vision XL 34B
Entegra Coach Vision XL Class A gas motorhome 34B highlights: Fireplace Rear ... more about Vision XL 34B
Specifications

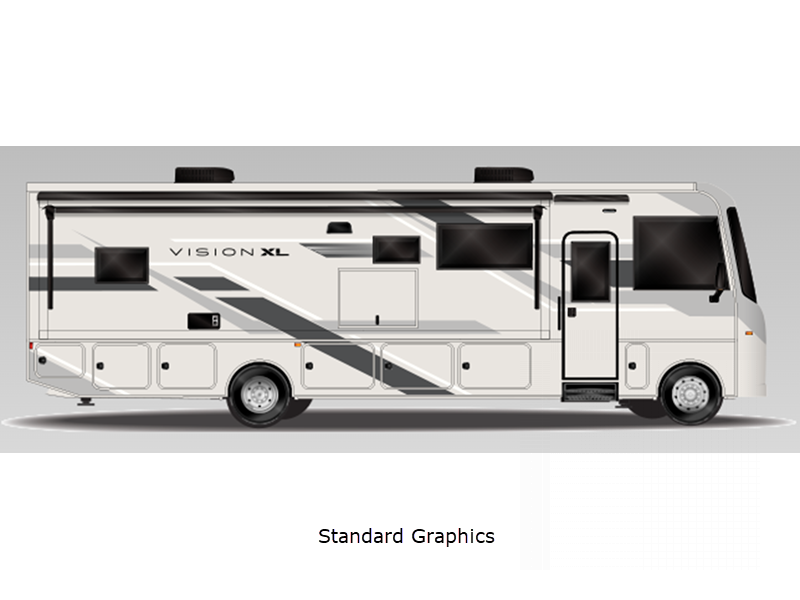

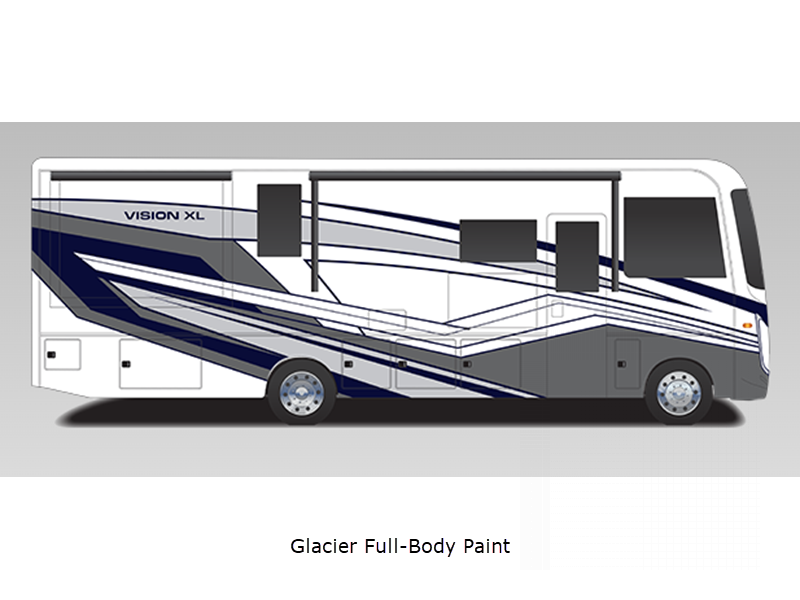

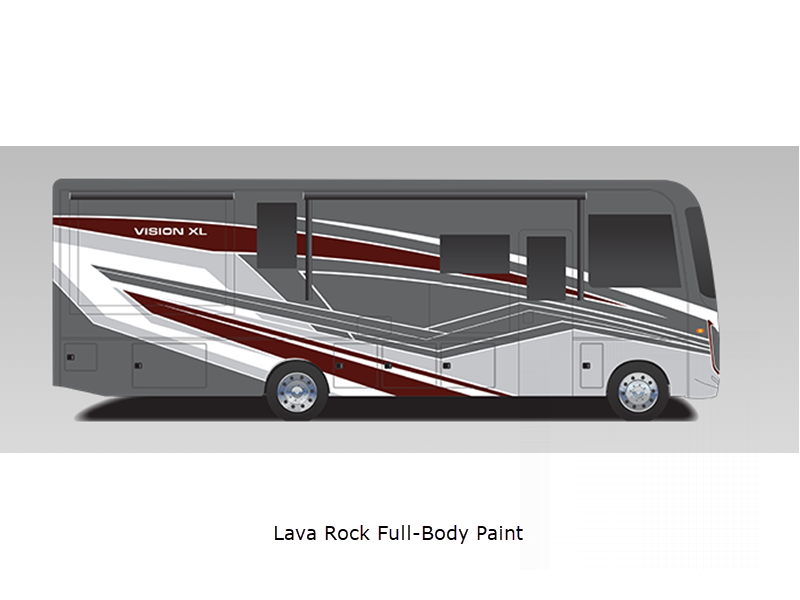

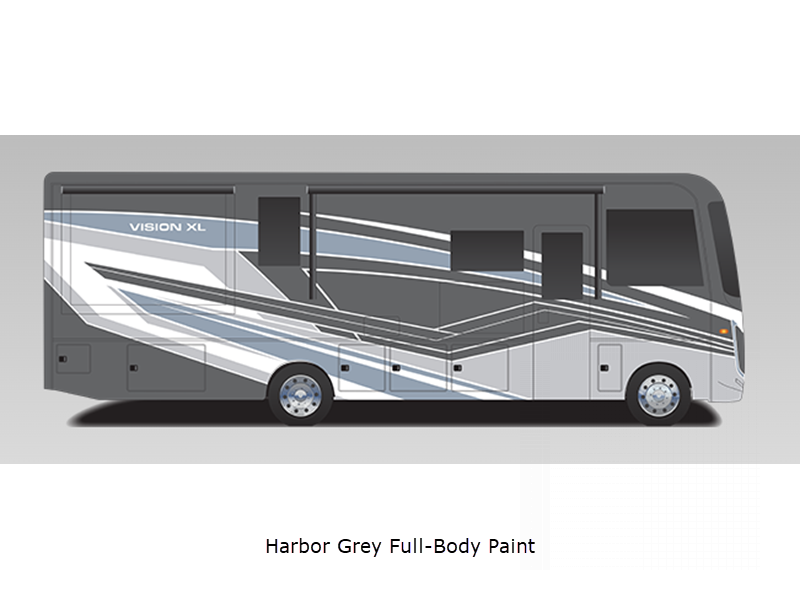

Sleeps 5 Slides 2 Length 36 ft 11 in Ext Width 8 ft 5 in Ext Height 12 ft 10 in Int Height 7 ft Interior Color Fossil, Modern Farmhouse Exterior Color Standard Graphics, Elias, Foraker, King, Logan Hitch Weight 5000 lbs GVWR 22000 lbs Fresh Water Capacity 72 gals Grey Water Capacity 40 gals Black Water Capacity 40 gals Tire Size 22.5" Furnace BTU 30000 btu Generator 5,500-watt Onan Marquis Gold Genset Fuel Type Gas Engine 7.3L V8 Chassis Ford F53 Horsepower 350 hp Fuel Capacity 80 gals Wheelbase 228 in Available Beds King Torque 468 ft-lb Refrigerator Type Residential Cooktop Burners 3 Shower Size 30" x 36" Number of Awnings 1 Axle Weight Front 8000 lbs Axle Weight Rear 15000 lbs LP Tank Capacity 16.5 gals Water Heater Capacity 10 gal Water Heater Type Gas/Electric AC BTU 28500 btu TV Info LR 39" LED HD Smart TV, BR LED HD Smart TV, Ext. LED HD Smart TV Awning Info 18' Electric with LED Lights Washer/Dryer Available Yes Gross Combined Weight 26000 lbs Shower Type Standard Electrical Service 50 amp Similar Floorplans
-
Vision XL 34G
Entegra Coach Vision XL Class A gas motorhome 34G highlights: Theater Sofa ... more about Vision XL 34G
Specifications
Sleeps 5 Slides 2 Length 36 ft 6 in Ext Width 8 ft 5 in Ext Height 12 ft 10 in Int Height 7 ft Interior Color Fossil, Modern Farmhouse Exterior Color Standard Graphics, Elias, Foraker, King, Logan Hitch Weight 5000 lbs GVWR 22000 lbs Fresh Water Capacity 72 gals Grey Water Capacity 40 gals Black Water Capacity 50 gals Tire Size 22.5" Furnace BTU 30000 btu Generator 5,500-watt Onan Marquis Gold Genset Fuel Type Gas Engine 7.3L V8 Chassis Ford F53 Horsepower 350 hp Fuel Capacity 80 gals Wheelbase 238 in Available Beds RV King Torque 468 ft-lb Refrigerator Type Residential Cooktop Burners 3 Shower Size 30" x 36" Number of Awnings 1 Axle Weight Front 8000 lbs Axle Weight Rear 15000 lbs LP Tank Capacity 16.5 gals Water Heater Capacity 10 gal Water Heater Type Gas/Electric AC BTU 28500 btu TV Info LR 50" LED HD Smart TV on Lift, BR LED HD Smart TV, Ext. LED HD Smart TV Awning Info 23' Electric with LED Lights Washer/Dryer Available Yes Gross Combined Weight 26000 lbs Shower Type Standard Electrical Service 50 amp Similar Floorplans
-
Vision XL 36A

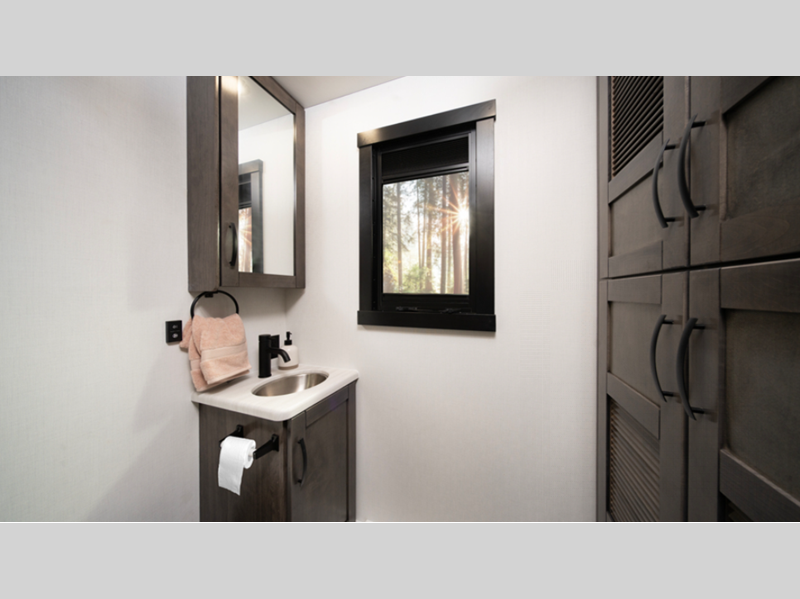

Entegra Coach Vision XL Class A gas motorhome 36A highlights: Two Full Bathrooms ... more about Vision XL 36A
Have a question about this floorplan? Contact Us
Specifications
Sleeps 7 Slides 3 Length 38 ft 10 in Ext Width 8 ft 5 in Ext Height 12 ft 10 in Int Height 7 ft Interior Color Fossil, Modern Farmhouse Exterior Color Standard Graphics, Elias, Foraker, King, Logan Hitch Weight 5000 lbs GVWR 24000 lbs Fresh Water Capacity 72 gals Grey Water Capacity 80 gals Black Water Capacity 102 gals Tire Size 22.5" Furnace BTU 30000 btu Generator 5,500-watt Onan Marquis Gold Genset Fuel Type Gas Engine 7.3L V8 Chassis Ford F53 Horsepower 350 hp Fuel Capacity 80 gals Wheelbase 252 in Number Of Bunks 2 Available Beds King Torque 468 ft-lb Refrigerator Type Residential Cooktop Burners 3 Shower Size 32" x 32" Number of Awnings 1 Axle Weight Front 9000 lbs Axle Weight Rear 15500 lbs LP Tank Capacity 16.5 gals Water Heater Capacity 10 gal Water Heater Type Gas/Electric AC BTU 28500 btu TV Info LR 39" LED HD Smart TV, BR LED HD Smart TV, Ext. LED HD Smart TV Awning Info 12' Electric with LED Lights Washer/Dryer Available Yes Gross Combined Weight 30000 lbs Shower Type Radius Electrical Service 50 amp Similar Floorplans
-
Vision XL 36C
Entegra Coach Vision XL Class A gas motorhome 36C highlights: Master Suite Full ... more about Vision XL 36C
Have a question about this floorplan? Contact Us
Specifications
Sleeps 5 Slides 3 Length 38 ft 10 in Ext Width 8 ft 5 in Ext Height 12 ft 10 in Int Height 7 ft Interior Color Fossil, Modern Farmhouse Exterior Color Standard Graphics, Elias, Foraker, King, Logan Hitch Weight 5000 lbs GVWR 24000 lbs Fresh Water Capacity 72 gals Grey Water Capacity 72 gals Black Water Capacity 72 gals Tire Size 22.5" Furnace BTU 30000 btu Generator 5,500-Watt Onan Marquis Gold Genset Fuel Type Gas Engine 7.3L V8 Chassis Ford F53 Horsepower 350 hp Fuel Capacity 80 gals Wheelbase 252 in Available Beds King Torque 468 ft-lb Refrigerator Type Residential Cooktop Burners 3 Shower Size 30" x 36" Number of Awnings 1 Axle Weight Front 9000 lbs Axle Weight Rear 15500 lbs LP Tank Capacity 16.5 gals Water Heater Capacity 10 gal Water Heater Type Gas/Electric AC BTU 28500 btu TV Info LR 50" LED HD Smart TV on Lift, BR LED HD Smart TV, Ext. LED HD Smart TV Awning Info 20' Electric with LED Lights Washer/Dryer Available Yes Gross Combined Weight 30000 lbs Shower Type Standard Electrical Service 50 amp Similar Floorplans
Take a Virtual Tour
Vision XL Features:
Standard Features (2023)
Chassis
- EZDRIVE™ ELITE: Computer-balanced driveshaft, variable-rate jounce bumpers, heavy-duty front and rear stabilizer bars, SACHS shocks, 22.5" Michelin® tires
- Automatic hydraulic leveling jacks
- Ford® F53 chassis
- 7.3L V-8 350 HP engine with 468 ft.-lb. torque
- 6-speed automatic TorqShift® transmission with overdrive and tow haul mode
- 210-amp alternator
- G-rated highway tires - 235/80R22.5 (34B, 34G), 255/80R22.5 (36A)
- Front and rear disc, 4-wheel anti-lock brakes
- 5,000-lb. rear hitch receiver with dual connector and 7-pin plug
- 12V chassis battery
- 80-gal. fuel tank
Construction
- TuffShell™ vacuum-bond laminated floor
- TuffShell™ vacuum-bond laminated sidewalls
- Bead-foam insulation (R-24 max roof, R-9 max floor, R-8 max walls)
- One-piece, seamless, fiberglass front and rear caps
- One-piece, seamless, crowned fiberglass roof

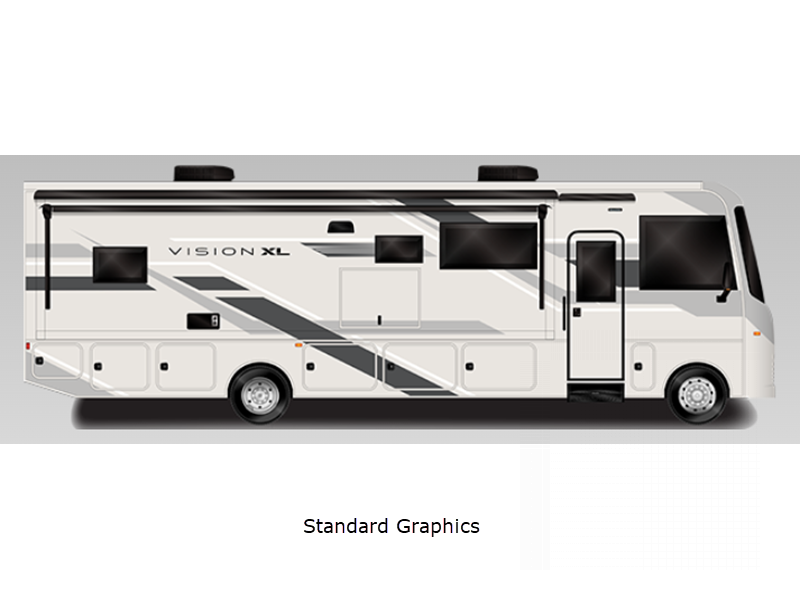

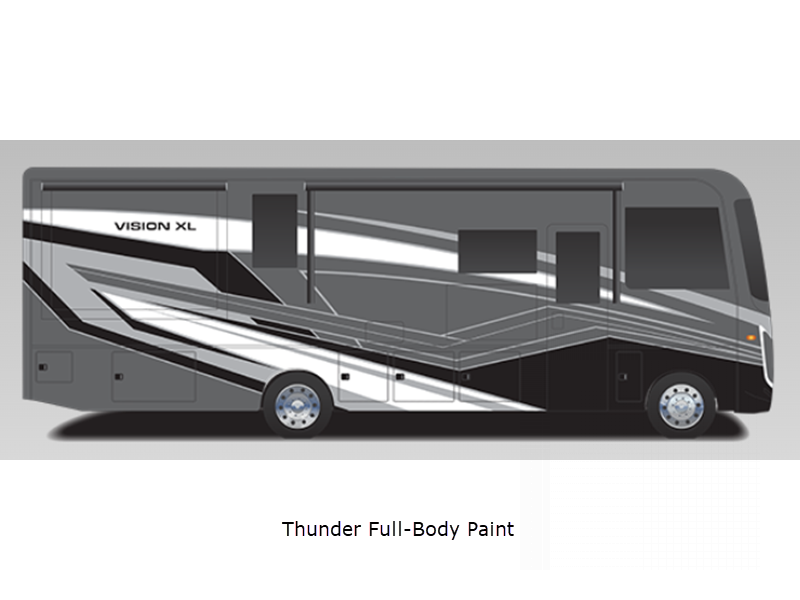

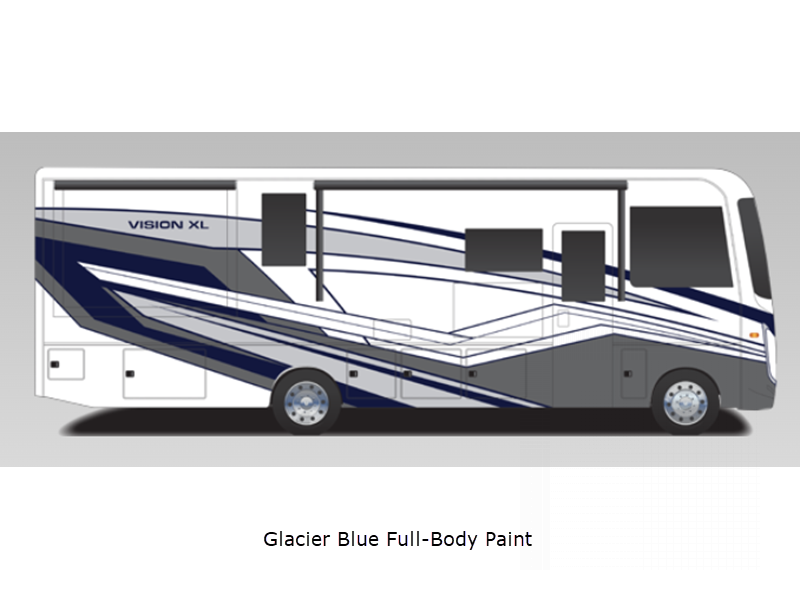

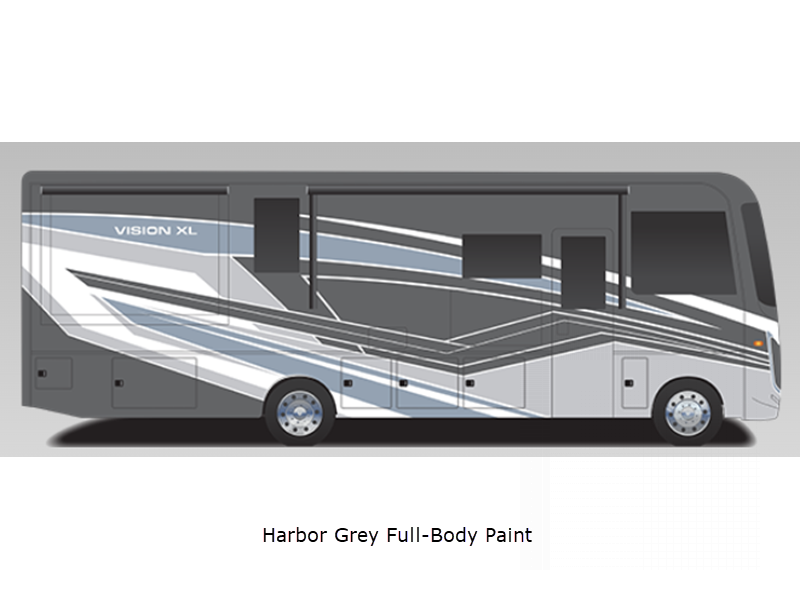

- Fiberglass exterior walls with vinyl graphics
Heat, AC, Water & Power
- 15,000-BTU A/C unit with heat pump and second 13,500-BTU A/C unit
- Onan® Marquis Gold Genset 5,500-watt generator with auto-gen start
- 1,200-watt inverter
- 50-amp electrical service
- 10 gal. gas/electric water heater
- Transfer switch with reverse polarity protection
- (2) 6V AGM (220Ah) house batteries on slide out tray
- Heated holding tanks (12V pads)
- 30,000 BTU auto-ignition ducted furnace
- 16.5-gal. propane tank (56-lb.) with LP quick-connect hookup
- Winterization drain system
- Black tank flush
- 12V demand water pump
- Water filtration system
Exterior
- Frameless windows
- Exterior entertainment center with outside speakers, LED HD Smart TV mounted on swivel bracket and single-disc DVD/FM radio
- Electric patio awning with LED lights
- Slide out awnings
- 190W solar panel with dual controller
- Exterior utility center
- Outside shower
- Entrance door with industry’s largest travel-view window
- Electric-powered entrance step
- Lockable pass-through storage compartments with slam latches
- Roof ladder
- Prep for satellite dish
- Third brake light

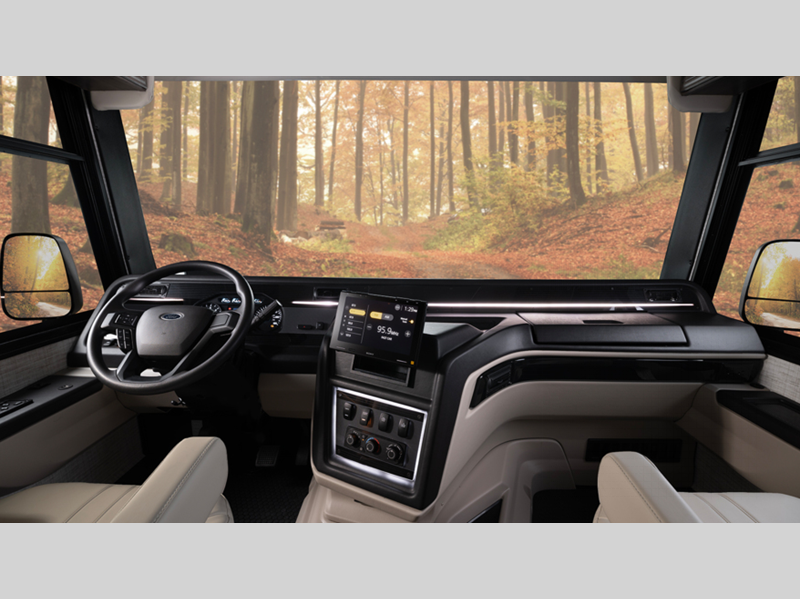

Cockpit
- Sony® infotainment center with Apple CarPlay® and Android Auto™
- Backup and side-view cameras
- Removable driver/passenger cockpit table
- Power front privacy shade with manual side privacy shades
- 120-in. panoramic windshield
- 6-way power and swivel driver/passenger seats
- Soft-touch, vinyl-wrapped automotive dash
- A/C and cruise control
- Tilt steering wheel
- Auxiliary start
- Winegard 2.0 Wi-Fi/4G antenna

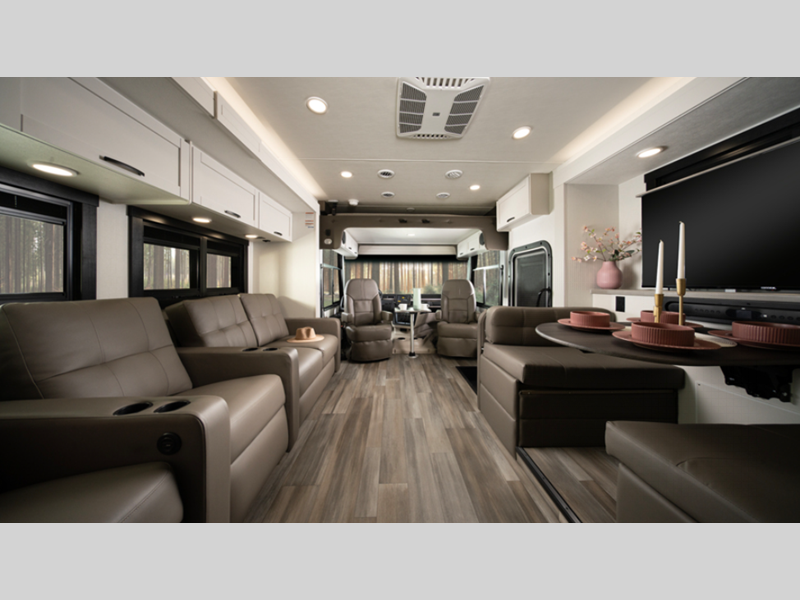

Interior

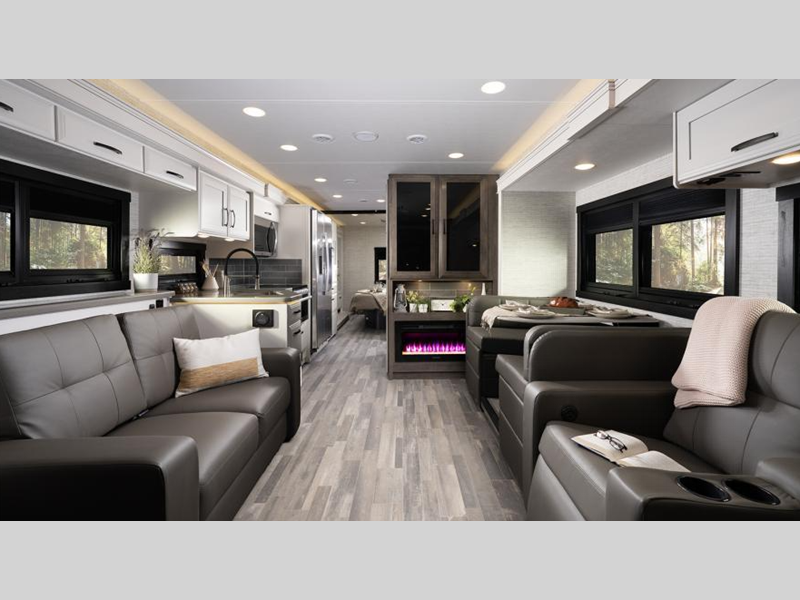

- LED HD Smart TV in living area
- Day/night roller shades in living area

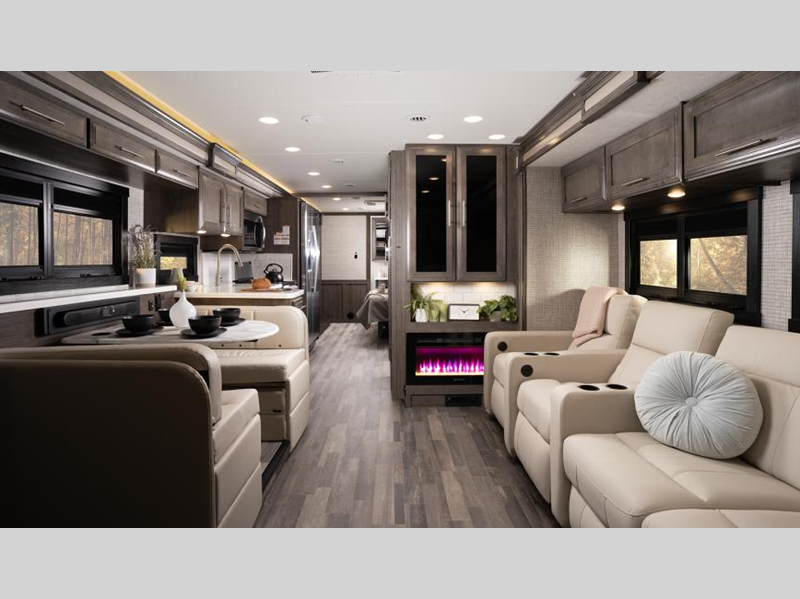

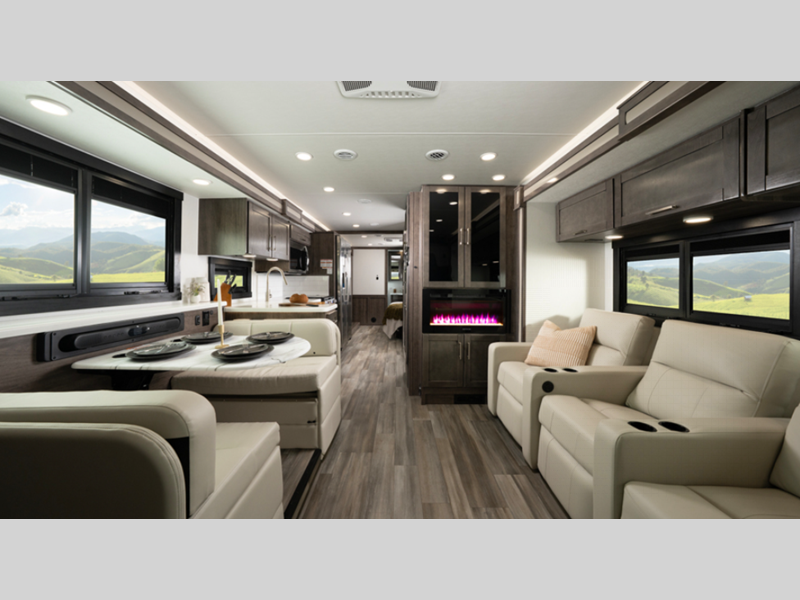

- Furrion® electric fireplace (34B, 34G only)
- Firefly Multiplex system
- 84-in. interior ceiling height with padded vinyl ceiling
- High-intensity recessed LED ceiling lights
- LED-lit hardwood fascia
- Hardwood cabinet doors and drawers
- Cable TV hookup with RG-6 coax
- Bunks with industry-exclusive, 300-lb. capacity and wall-mounted tablet holder in each (36A)
Kitchen
- LED-lit, solid-surface kitchen countertops
- Recessed stainless steel sink and sink covers
- Ball-bearing drawer guides
- Entegra-exclusive, easy-operation legless dinette table

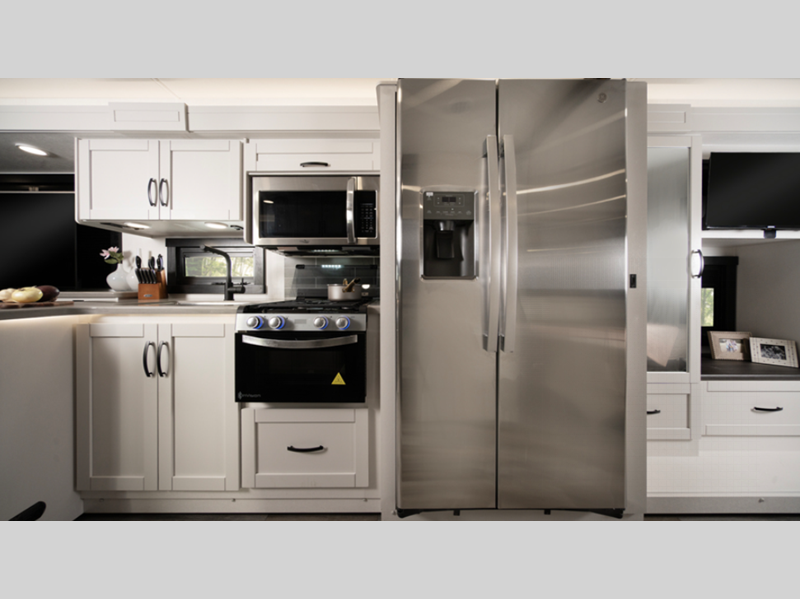

- Residential refrigerator
- Furrion® all-in-one cooktop and oven
- Residential-size microwave
- Decorative kitchen backsplash

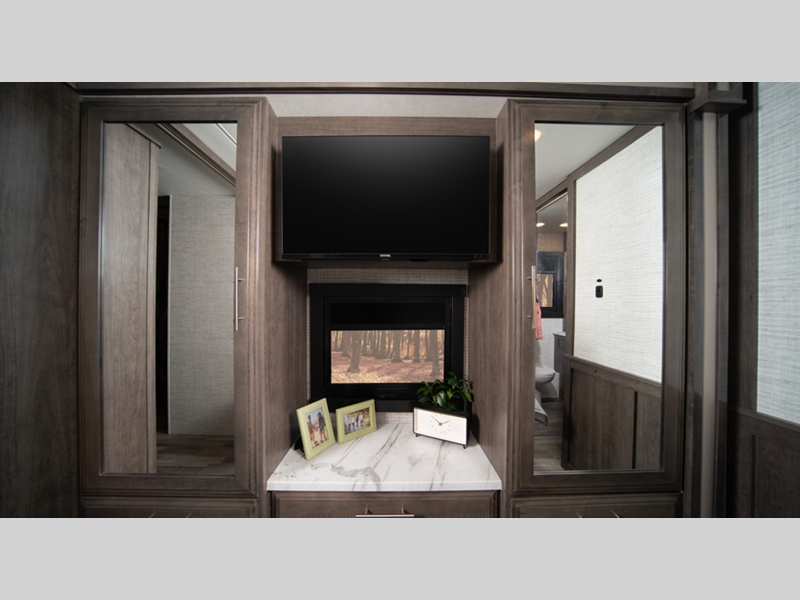

Bedroom

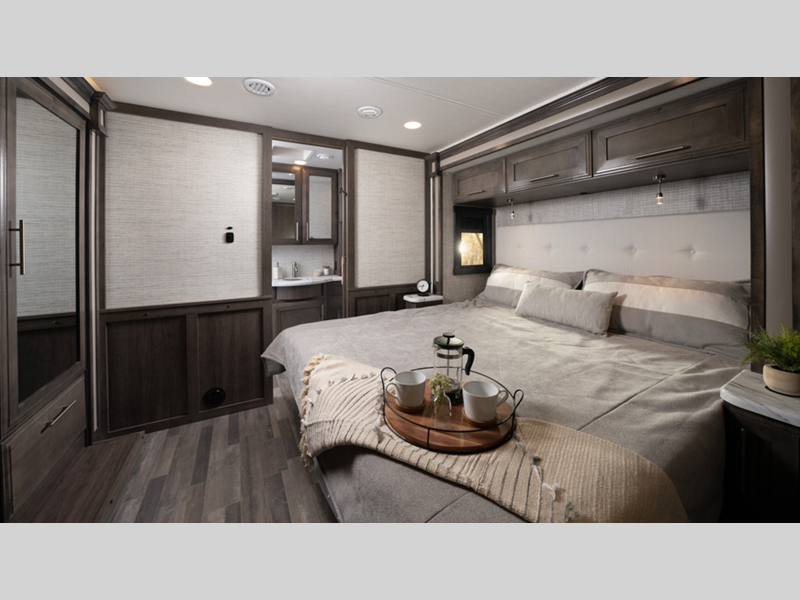

- Walk-around King-size bed with bedspread and nightstands
- USB port and wireless charging in nightstands
- Under-bed storage (select models)

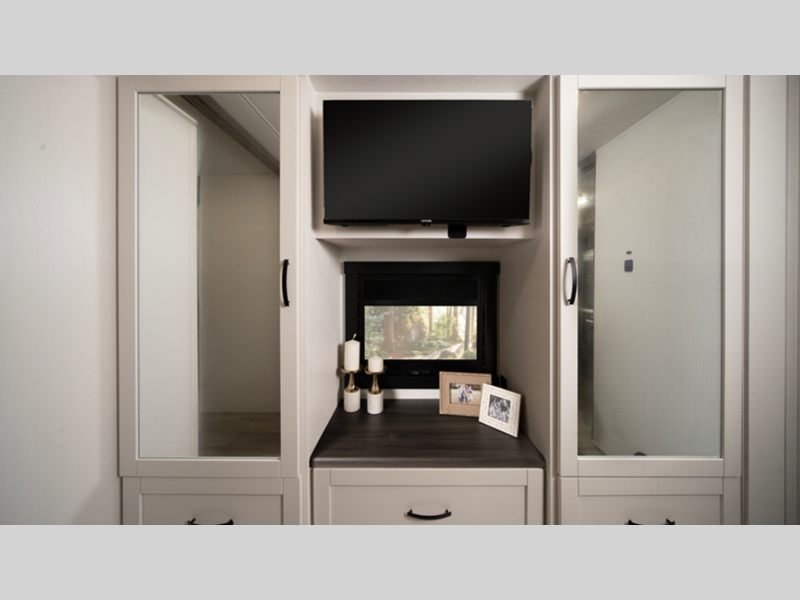

- LED HD Smart TV in bedroom
- Large wardrobes

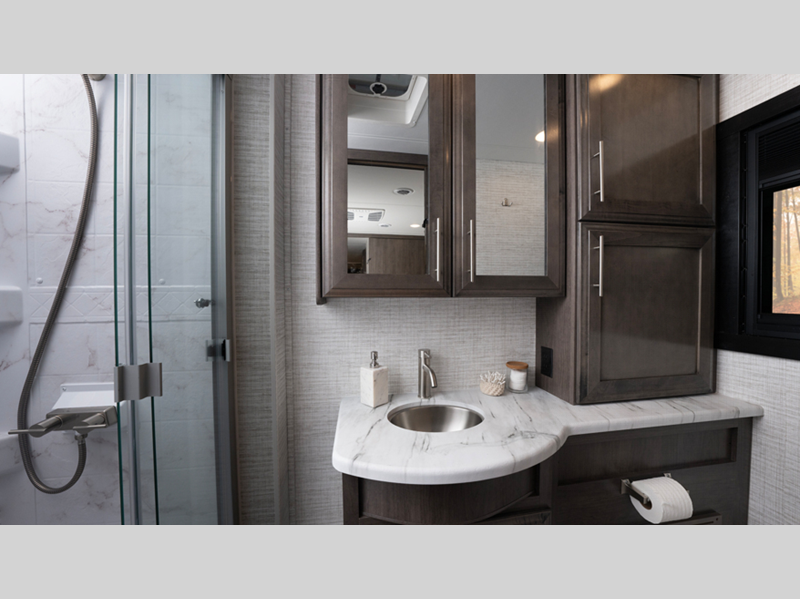

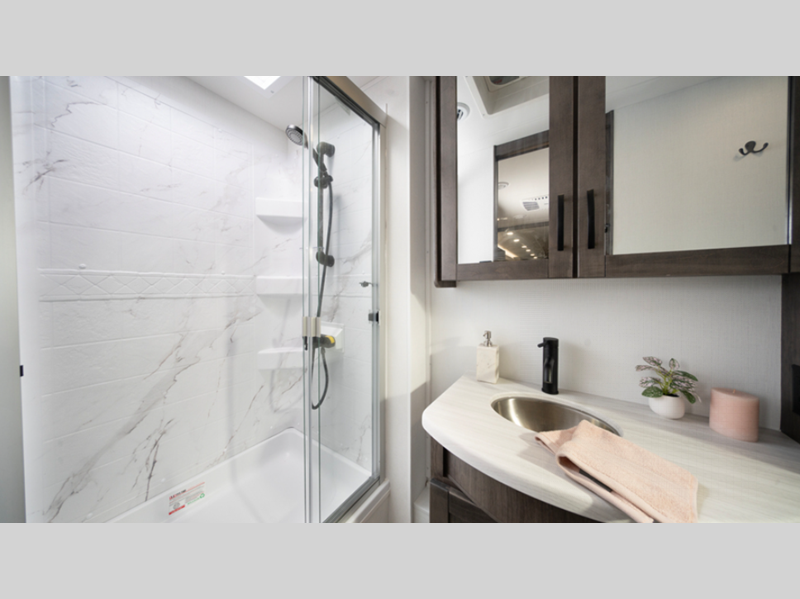

Bathroom
- Shower with decorative surround, skylight and light
- Recessed stainless steel bathroom sink
- Porcelain toilet with foot flush
- Powered roof vent in bathroom with wall switch
Safety
- 2-point lap safety belts in all designated seating locations
- Smoke alarm
- Carbon monoxide detector
Options
- Canadian standards
- Customer Value Package (Mandatory)
- E-Z DRIVE ELITE, automatic hydraulic leveling jacks, frameless windows, 15K BTU A/C with heat pump and second 13.5K BTU A/C, exterior entertainment center, electric patio awning with LED lights, slideout awnings, 5.5K generator with auto-gen. start, 1,200W inverter, 50 amp service, 10 gal. gas/electric water heater, Sony infotainment center, backup and side-view cameras, removable cockpit table, LED-lit solid-surface countertops, LED HD Smart TV in living area, day/night roller shades

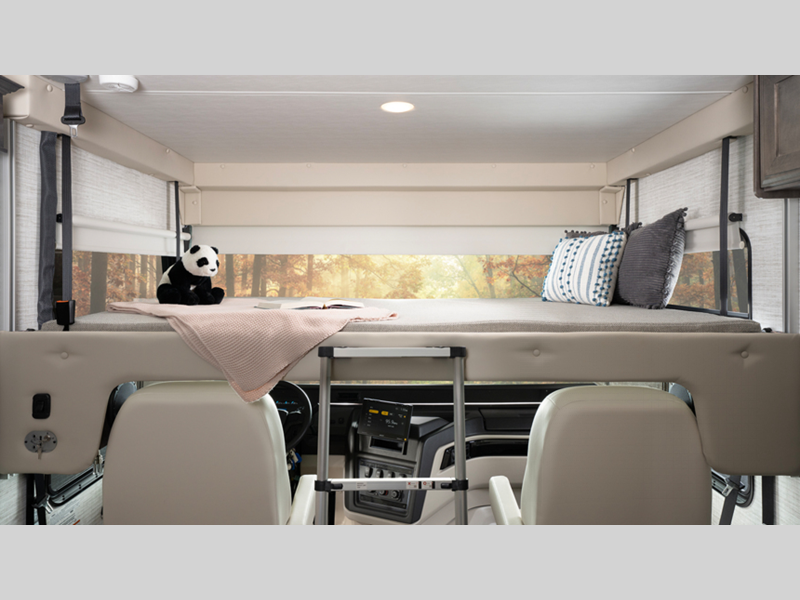

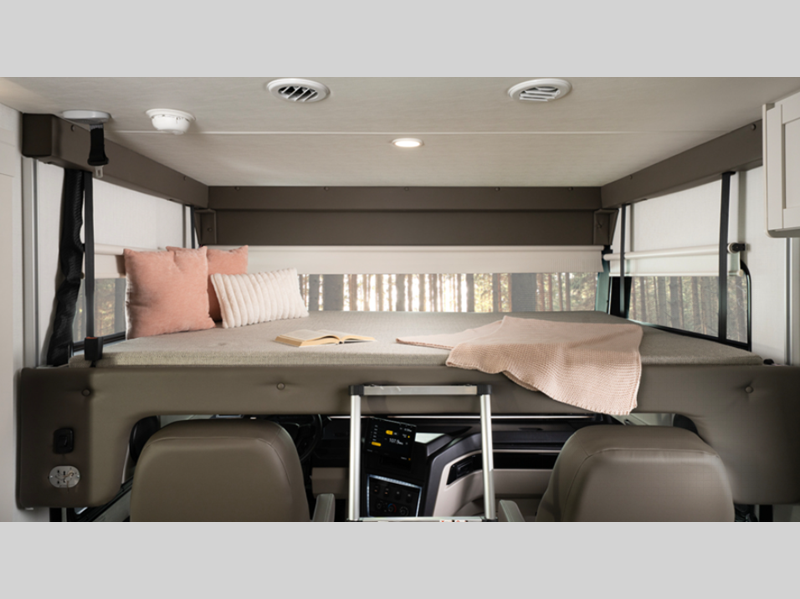

- Overhead bunk in cab area with 750-lb. capacity

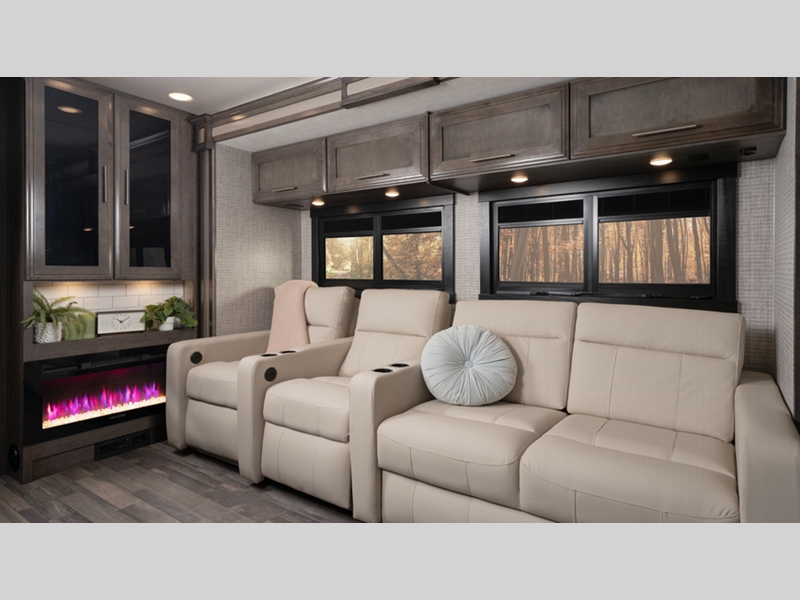

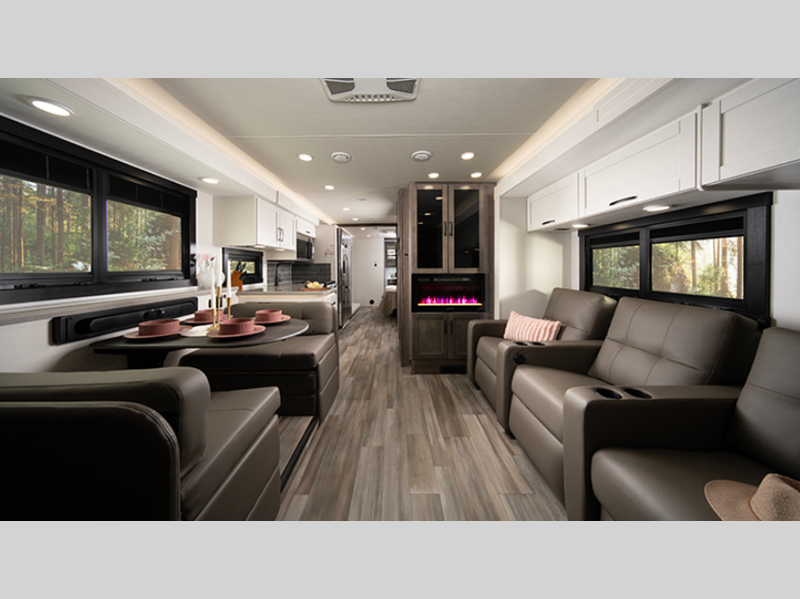

- Power theater seating (36A only; standard on 34G, 36C)
- 12 cu. ft. gas/electric refrigerator
- Combination washer/dryer (N/A 36C)
- Stackable washer/dryer (36C)
See us for a complete list of features and available options!
All standard features and specifications are subject to change.
All warranty info is typically reserved for new units and is subject to specific terms and conditions. See us for more details.
Due to Covid19 supply chain issues, some features and options shown may be temporarily substituted or removed.
Manu-Facts:
In the spring of 2008, Entegra Coach became a member of the Jayco family of companies. Ever since, we've taken great pride in the details—and each luxury motorhome we build embodies that principle.
We started building luxury motorcoaches one at a time—with a superior foundation, unrelenting attention to detail and old-world craftsmanship, unmatched engineering innovation, rock-solid construction and a ride that's as smooth and quiet as it is invigorating and well-appointed.
In 2018, our pursuit of the superior luxury motorhome expanded beyond diesel Class A coaches to gas Class As and Class Cs. By building on experience and listening to customers, we're making the Entegra Coach luxury experience a reality for more travelers than ever. As always, we back each coach with personalized customer service and coverage that is unmatched in the industry.
So from the moment you drive off the lot, you're not only an owner—you're a member of the family
